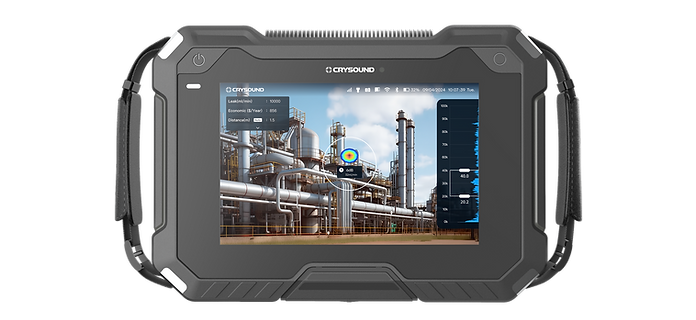

CRY8124 Advanced Acoustic Imaging Camera
DETECTS LEAKS AT TWICE THE DISTANCE OF FIRST GENERATION
NEW SOFTWARE FOR LEAK DETECTION & PARTIAL DISCHARGE (PD)
UP TO 10 HOURS OF OPERATION WITH REPLACEABLE BATTERY
ENHANCING EFFICIENCY WITH BLUETOOTH & WI-FI CONNECTIVITY
UNMATCHED PERFORMANCE
The CRY8124 sets the bar with 200 microphones, a 100kHz bandwidth, and the fastest processor in the industry, allowing it to detect smaller leaks and partial discharges from greater distances than any other system. By keeping operators at a safer distance from potential hazards, the CRY8124 minimizes exposure to toxic gases. The extended detection range also enables the camera to cover a larger area, boosting testing efficiency by over four times.
ENHANCED DETECTION IN NOISY ENVIRONMENTS
Background noise is often the biggest challenge during field inspections, limiting the effectiveness of acoustic imaging cameras. The CRY8124 overcomes this with its innovative "HyperVision" algorithm. HyperVision reduces interference between different sound sources, amplifying the target sound and accurately identifying previously undetected sources. This allows for clearer, more reliable detection in even the noisiest environments.
SIMULTANEOUS THERMAL & ACOUSTIC IMAGING DISPLAY
The integration of infrared technology with the CRY8124 acoustic camera enhances its capabilities and efficiency. This powerful combination allows for real-time visualization of both thermal and acoustic images at the same time, ensuring no detail is missed. By eliminating the need for separate thermal and acoustic inspections, this integration streamlines workflows and improves overall inspection efficiency. It's particularly valuable in high-temperature environments, such as with steam traps, where precise temperature measurements contribute to more informed decision-making.
ERGONOMIC DESIGN & PREMIUM DISPLAY
Weighing only 3 lbs (1.4 kg), this device is wrapped in a durable soft rubber coating, offering a comfortable tactile feel and a secure grip. Its ergonomically designed handle allows for easy single-handed operation, enhancing both user comfort and safety in a variety of situations.
The display boasts an impressive 8-inch LCD screen with a 1920x1200 resolution, providing crisp, detailed visuals. With a brightness of 600 nits, the screen remains clear and readable even in direct sunlight, ensuring dependable performance in diverse lighting conditions.
CRY8124 | SPECIFICATIONS |
|---|---|
ACOUSTIC SPECS | |
Microphone array
| 200 channels MEMS microphone |
Frequency range | 2k - 100k Hz |
SPL range | 28 - 132 dB
|
Minimum Detectable Leak
| 10 m 2.7 bar 0.0029 L/min，0.5 m 1.9 bar 0.0028 L/min |
Test distance | 0.5 - 200 m (1 - 656 ft)
|
CAMERA | |
Camera FOV | 66° |
Focal length | 4.3 mm (0.17 inches) |
Camera pixel | 13M pixel |
Digital zoom | 1x - 6x |
Fill light | LED * 4 |
DISPLAY | |
Resolution | 1920 * 1200 |
Size
| 8 inches |
Touchscreen | Capacitive touchscreen |
Brightness | 600 nits，support auto and manual adjustment |
STORAGE | |
Storage | 64G internal，64G external TF card |
Data format
| .jpg (picture)，.mp4 (video)，.wav (audio)，.cdat（data） |
Video length
| 10 minutes
|
Date export | USB-C，Wi-Fi，TF card |
POWER | |
Battery capacity
| 6600mAh @7.2V
|
Battery type
| Smart battery with indicator，replaceable |
Battery life
| Up to 5 hours |
GENERAL SPECS | |
Size
| 270 * 190 * 51 mm (10.6 * 7.5 * 2.0 inches) |
Weight | 1.4 kg (3 lbs) |
Wi-Fi | 802.11a/b/g/n/ac |
Bluetooth | BT 5.2 |
GNSS | GPS+BDS+GLONASS+GALILEO+QZSS |
Operating temp. | -20 - +50 ℃，10 - 95 %，no cond. |
Storage temp. | -20 - +70 ℃，10 - 95 %，no cond. |
IP rated | IP54 |
Storage size | 64G internal，64G external |
Warranty | 2 years |
CERTIFICATE | |
Safety | IEC 61010-1 |
EMC | IEC 61326-1 |
Vibration | 2g，IEC 60068-2-6 |
Shock | 25g，IEC 60068-2-27 |
Drop test | 1.2 m (4 ft) |
SOFTWARE | |
Function | Multi-point imaging，directional focus，distance measurement，leak volume estimation，PRPD spectrum，type recongnition，picture labeling，report export，and etc. |
HARDWARE PORT | |
USB-C 1 | USB 3.0 for charging，HDMI，data export |
USB-C 2 | USB 2.0 for data export，USB sensor |
3.5 mm audio jack | Headphone output |
TF card slot | Headphone output |
SIM card slot | Inserting a 4G/5G network communication card |
Analog input | 4 channels，20 - 100k Hz，IEPE，phantom power supply |
SUPPORTED LANGUAGE | |
Language | Chinese，English，Korean，French，Japanese，Russian，German，Italian，EU Spanish，Portuguese，Hungarian，Dutch，Cambodian，Vietnamese，Turkish，Polish |
