CRY2626G Drone-Mounted Acoustic Imaging Camera
Advanced Reporting Software
Instant Insight Through Drone Controller
“HyperVision” algorithm NOISE REDUCTION
DRONE MOUNTABLE FOR LONG DISTANCE INSPECTIONS
DETECT DISCHARGES AND LEAKS FROM KILOMETERS AWAY
The drone-mounted acoustic imaging camera is an advanced solution for inspecting power transmission lines and gas pipelines. It excels at detecting partial discharges (PD) and gas leaks, ensuring the safety and reliability of infrastructure. Offering unmatched mobility, the system allows operators to access hard-to-reach areas. With real-time visualization and precise detection, it improves inspection efficiency, reduces failure risks, and enhances overall safety.
.png)
ADVANCED DESIGN OF THE DRONE-MOUNTED ACOUSTIC CAMERA

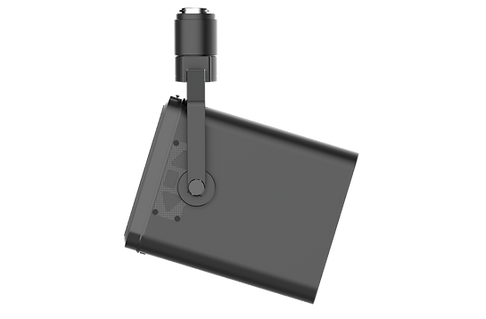

The drone-mounted acoustic imaging camera consists of two essential components that work together for outstanding performance and versatility. At its core is the acoustic imaging camera, featuring advanced sound sensors and algorithms to precisely detect and visualize leaks and partial discharges, ensuring accurate, real-time issue identification in industrial settings. Supporting the camera is the dual-axis gimbal, offering exceptional stability and control. The gimbal allows for precise adjustments and smooth movements, ensuring the camera remains focused on the target area, even in challenging conditions.
ENHANCED DRONE PROPELLER NOISE SUPPRESSION
Drone propeller noise is an inherent challenge. To reduce this, the system combines physical noise suppression with advanced signal processing. It features three layers of sound-absorbing material to block and dampen propeller noise. The innovative "HyperVision" algorithm also isolates target sound emissions from background noise in the acoustic images, improving detection accuracy.
FAST DEPLOYMENT AND PORTABILITY FOR ROUTINE INSPECTIONS

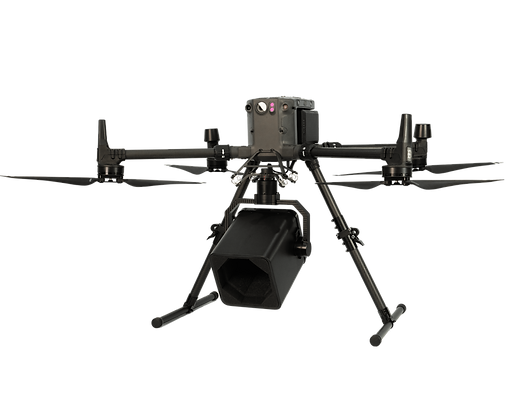

The CRY2626G Drone-mounted Acoustic Imaging Camera integrates effortlessly with drones via SKYPort connectivity, enabling fast deployment and operation. It connects directly to the DJI M300 and M350, allowing for quick setup and takeoff in just one minute. This rapid deployment ensures inspections can start almost immediately, boosting operational efficiency and responsiveness. Designed for portability, the CRY2626G includes a wheeled protective case for easy transport and field use. This feature is especially valuable for routine inspections, where mobility and quick access are essential.
CRY2626G | SPECIFICATIONS |
|---|---|
ACOUSTIC SPECS | |
Microphone array | 128 channels MEMS microphone |
Frequency range | 2k - 48k Hz |
SPL range | 28 - 132 dB |
Test distance | 0.5 - 35 m |
CAMERA | |
Camera FOV | 62° |
Camera pixels | 8M pixels |
Focal length | 3.04 mm |
STORAGE | |
Internal storage | 8G internal |
External storage | 64G external TF card |
Data format | .jpg (picture), .mp4 (video), .wav (audio) |
GIMBAL | |
Pan | -90 - +90° |
Tilt | -90 - -20° |
Accuracy | 1° |
GENERAL SPECIFICATIONS | |
Size | 340 * 232 * 167 mm |
Weight | 1.4 kg |
Flight time | 30 minutes, *Depending on environmental conditions |
IP rate | IP42 |
Connector | Skyport V2 |
Operating temp. | -20 - +50 ℃ |
Storage temp. | -20 - +70 ℃ |
Operation humidity | 10 - 95 %, no condensation |
Drone | Dji M300 RTK, M350 RTK |
CERTIFICATE | |
Safety | IEC 61010-1 |
EMC | IEC 61326-1 |
Vibration | 2g, IEC 60068-2-6 |
Shock | 25g, IEC 60068-2-27 |
SOFTWARE | |
Function | PRPD spectrum, identification of partial discharge types, microphone test |
Report type | ISO 50001 template for gas leak and partial discharge |
Protocol | Dji PSDK protocol |
SUPPORTED LANGUAGES | |
Language | Chinese, English |
